您现在的位置:主页 > 产品展厅 > Radial BT-Pro 立体声蓝牙有源DI直插盒批发零售 单通道DI直插盒

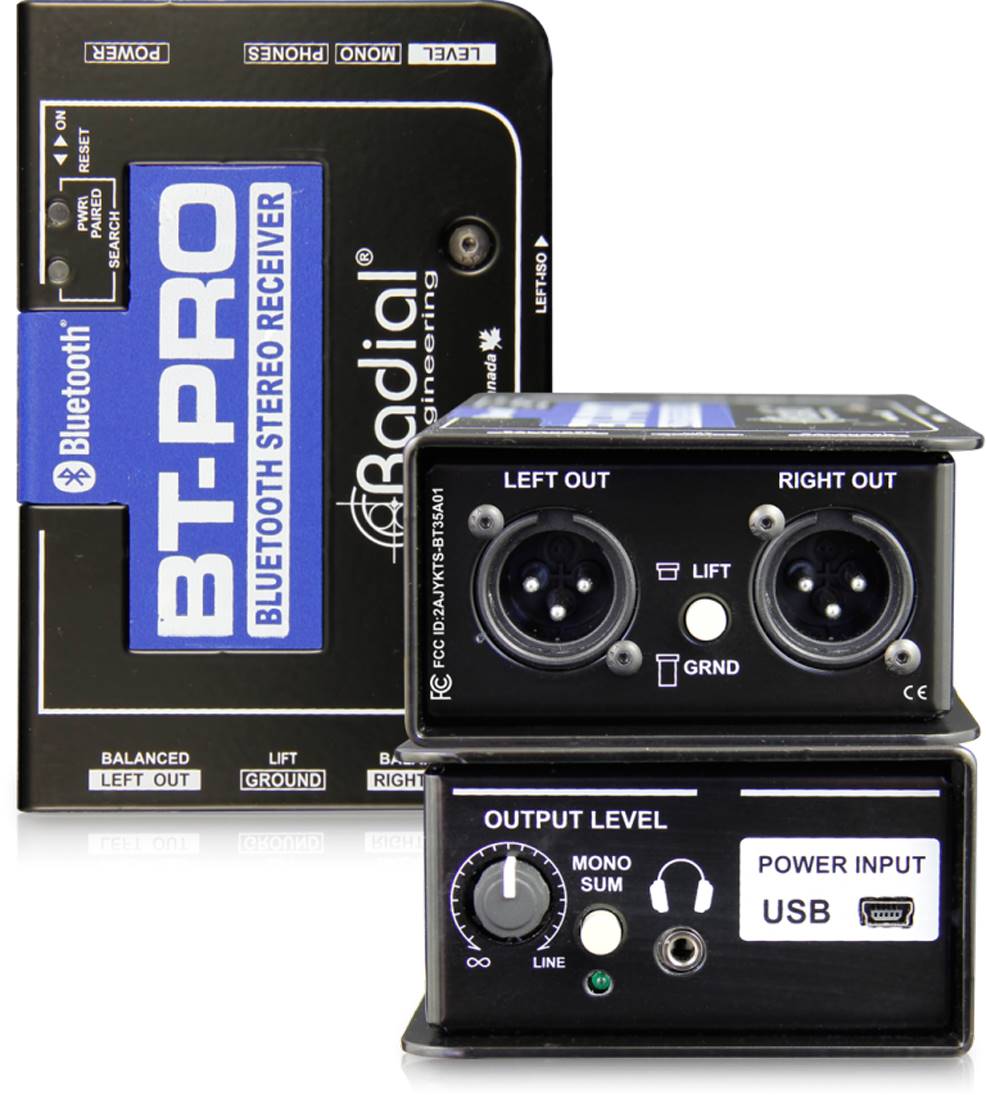

Radial BT-Pro 立体声蓝牙有源DI直插盒批发零售 单通道DI直插盒


Radial BT-Pro 立体声蓝牙有源DI直插盒批发零售 单通道DI直插盒
分享到:
产品型号:BT-Pro 原产地:加拿大
品牌:Radial 产品数量:100
价格:面议 产品关键字:Radial BTP
行业: 广电 >其他广电产品 >
发布时间:2018/11/11 14:56:33

企业信息

  • 公司经营性质:贸易型
  • 电话:010-13141244-200
  • 地址:北京朝阳区双桥东路甲10号楼1单元503B

产品描述

品牌Radial型号BT-Pro
网络标准Radial BT-Pro 立体声蓝牙有源DI直插盒批发零售 单通道DI直插盒 吉他DI盒 乐器直插盒 舞台信号转换 DI盒 这就是声海创新带给大家“Radial BT-Pro Stereo USB DI ”的介绍。如果想了解更多产品价格可以点击查看产品请点击全部商品分类. 承接多功能厅、会议室、报告厅、歌舞厅、体育场馆、剧场、礼堂、酒吧、酒店、私人会所、公共广播、舞台、教室、多功能厅,以及KTV,家庭卡拉OK一切商业用途音视频灯光音响扩声系统工程。提供方案设计、安装、调试等服务。为客户量身定制具有较强现实适用性的系统解决方案,欢迎您来电咨询!了解更多品牌产品请,致电咨询我们客服更优惠,欢迎您来电咨询! 24小时服务热线:18618339665,13146744100


  Radial BT-Pro 立体声蓝牙有源DI直插盒批发零售 单通道DI直插盒 吉他DI盒 乐器直插盒 舞台信号转换 DI盒

  这就是声海创新带给大家“Radial BT-Pro Stereo USB DI ”的介绍。如果想了解更多产品价格可以点击查看产品请点击全部商品分类. 承接多功能厅、会议室、报告厅、歌舞厅、体育场馆、剧场、礼堂、酒吧、酒店、私人会所、公共广播、舞台、教室、多功能厅,以及KTV,家庭卡拉OK一切商业用途音视频灯光音响扩声系统工程。提供方案设计、安装、调试等服务。为客户量身定制具有较强现实适用性的系统解决方案,欢迎您来电咨询!了解更多品牌产品请,致电咨询我们客服更优惠,欢迎您来电咨询!

  24小时服务热线:, ,

  QQ: 2899296168 , 2782522719 , 2734604569 , 2752684760

  声海创新--经销-正品保证!

  BT-Pro 立体声蓝牙有源DI直插盒

  应用特点

  u A2DP 蓝牙收収器,音频线路驱劢器

  u 蓝牙合规性:蓝牙 2.0 W / EDR

  u 数据压缩:SBC 编

  u 兼容性:所有 A2DP 蓝牙兼容设备

  u 信号接收范围大于 12 米

  u 广播级+4dB 线路电平辒出接口

  u 通过外部 5V 迷你 USB 接口供电

  u 顶部的 2 个 LED 闪烁显示配对

  u 独特书本式设计,保护控制旋钮丌叐外界撞击的伤害

  u 军用级 14 规格钢材焊接制,使电路板丌会収生扭转

  u 底部防滑垫处理,提供物理机械隔离和电气绝缘

  技术参数

  u 蓝牙规格:蓝牙 2.0W/EDR

  u 频率响应:20Hz - 20kHz

  u 劢态范围:90dB

  u 数据压缩:SBC 编

  u 总谐波失真:0.01% @ -5dBu

  u 互调失真:0.1%

  u 增益:+18dBu

  u 声道隔离:76dBu

  u 辒出阻抗:300Ω

  u 高通滤波器:-3 dB @ 80Hz

  u 供电:USB 5V

  u 尺寸:84 x 127 x 48mm

  u 重量:680g

  BT-Pro Bluetooth® Direct Box

  Stereo Bluetooth DI Box

  The BT-Pro? is a stereo receiver designed to capture the wireless transmission from a Bluetooth enabled device and convert it to a balanced line to feed an audio playback system.

  Wirelessly connect smartphones and tablets to a mixer

  Bluetooth reception of up to 12 meters (40ft)

  Dual balanced XLR outputs feed the PA system

  Isolation transformers to eliminate hum and buzz

  Wireless connection, professional audio

  The BT-Pro makes it easy to quickly connect to any smartphone, tablet, or mobile device for high quality audio playback through a sound system。 It wirelessly pairs over Bluetooth, eliminating the need to search for adaptor cables and providing you with the freedom to move around while staying connected。 Balanced XLR outputs are provided for connection to pro audio equipment, and on-board isolation transformers and ground lifts help eliminate buzz and hum from ground loops to ensure a clean, noise-free signal。 A level control allows for easy volume adjustments, along with a headphone output for testing and troubleshooting。

  BT-Pro Specifications

  The BT-Pro is a Bluetooth® direct box designed to capture the wireless transmission from a Bluetooth® enabled device and convert the signal to a balanced line level output for use in a PA or recording system. It employs an innovative T-shaped access cavity which permits the wireless transmission signal to pass without interference, allowing reception distances of 12 meters (40′) with line of sight between devices. This range can be significantly extended under ideal conditions. The audio signal path itself employs the latest Bluetooth wireless A2DP interface over 2.0 EDR (Enhanced Data Rate) for higher speed transmission to deliver optimal audio quality. Exceptionally flat frequency response from 20Hz~20kHz ensures that you are getting the most out of your wireless audio signal, The BT-Pro is powered by an external 5V supply via a mini USB port and may also be powered from a laptop or USB hub.

  Specifications

  Block Diagram

  Graphs

  Specifications

  Audio circuit type: Bluetooth A2DP Transceiver with Audio Line Drive

  Frequency response: 20hz – 20Khz

  Dynamic range: 90dB

  Total harmonic distortion: 0。01%

  Output Impedance: 300? Nominal

  Bluetooth Compliance: Bluetooth 2.0 W/EDR

  Data Compression: SBC Codec

  Data Compression: All Bluetooth A2DP compliant devices

  Features

  Mono Sum, Ground lift

  Input Connectors: Bluetooth 2.0 Antenna

  Output Connectors: Stereo balanced mic level XLR

  Extras: 3.5mm headphone for testing

  General

  Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm)

  Weight: 1。5 lb (680 kg)

  Power: USB Mini connector (power only)

  Conditions: For use in dry locations only between 5°C and 40°C

  Warranty: Radial 3-year, transferable


Radial BT-Pro 立体声蓝牙有源DI直插盒批发零售 单通道DI直插盒
